Power Distribution Assemblies (PDU)

Supreme Cable manufacturers power distribution assemblies. The Supreme PDU is UL listed for power whips as low as 15 Amp and as high as 60 Amp, single gang or double gang with seal tight flex conduit from 1/2″ to 1 – 1/4″ diameter. We have also provided custom configured and designed conduit assemblies in 4″ Flex Steel. All our of power distribution cable assemblies are one hundred percent tested as well as Hi-Pot tested to enssure the high performance and mission critical cabling for your power cabling requirement. Supreme Cable manufactures high quality and UL certified power distribution cable assemblies with state of the art equipment. All assemblies are assembled by IPC certified specialists.

Supreme PDU Whips are custom and UL Listed

Power Distribution Cable Assemblies PDF

Under-Floor Power Whips, Drop-Down Power Whips, Flexible Liquid Tight Conduit, Multiple Color Options Available, NEMA Connector Options, Metal Clad Available

Wire Size and Wire Fill Table

Device Rating (Amps)Min AWG size in THHN/THWN1/2" LTFMC Conduit3/4" LTFMC Conduit1" LTFMC Conduit1-1/4" LTFMC Conduit
15A129162646
20A129162646
30A106101629
40A836916
50A6N/A4722
60A4N/AN/A47

Durability

Supreme Cable has done it all from marine, land, air, and space – all climates, any environment. Our assemblies are in use all over the world and in space!

Quality Management

Supreme Cable is ISO 9001:2015 and IPC 620 certified, RoHS and military compliant, as well as UL and CSA approved. Our testing is documented for accuracy and efficiencies. We also conduct random on-the-spot testing and whenever possible, 100% product testing. Supreme Cable’s PPM is well below industry standard.

Quality product is a result of quality service!

All conduit cable assemblies are manufactured to meet customer specifications:

  1. prints, drawings or schematics;
  2. bill of materials (BOM); and
  3. approved vendor list (AVL) when required

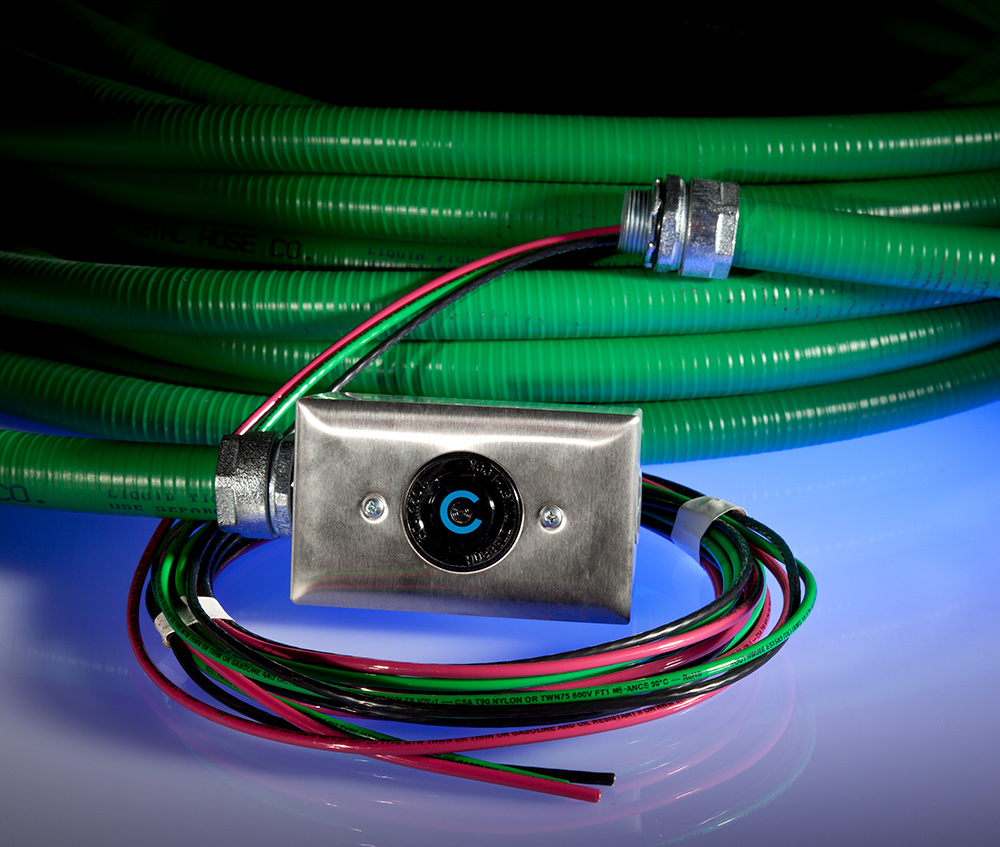

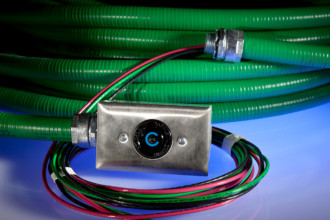

PDU conduit assemblies

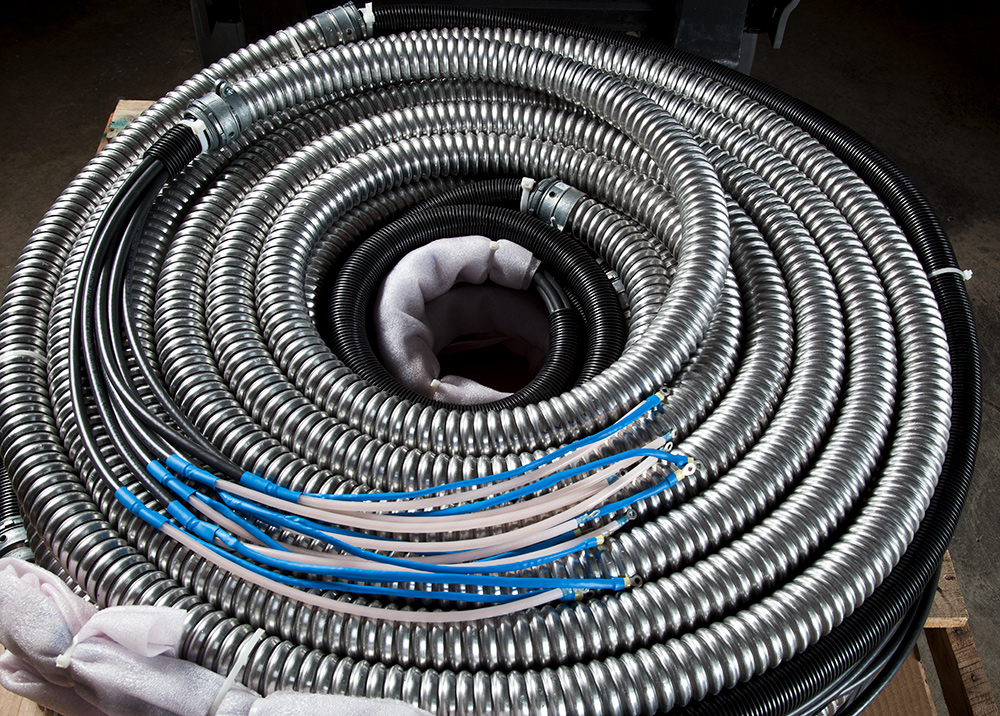

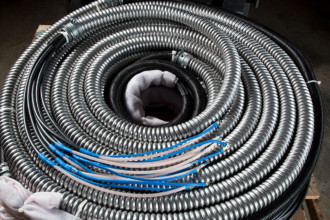

Power Distribution Assemblies (PDU)

Conduit assemblies

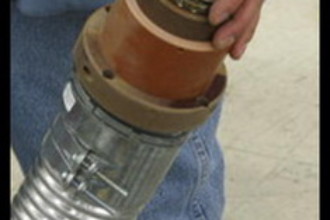

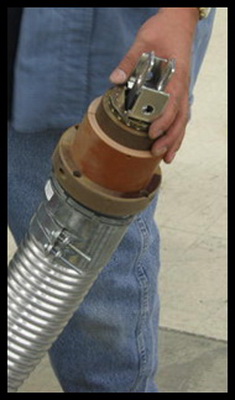

Custom Conduit Assemblies

Custom Conduit Assemblies

Custom Conduit Assemblies
